2JZ E30 engine mount kit

$320.00$460.00

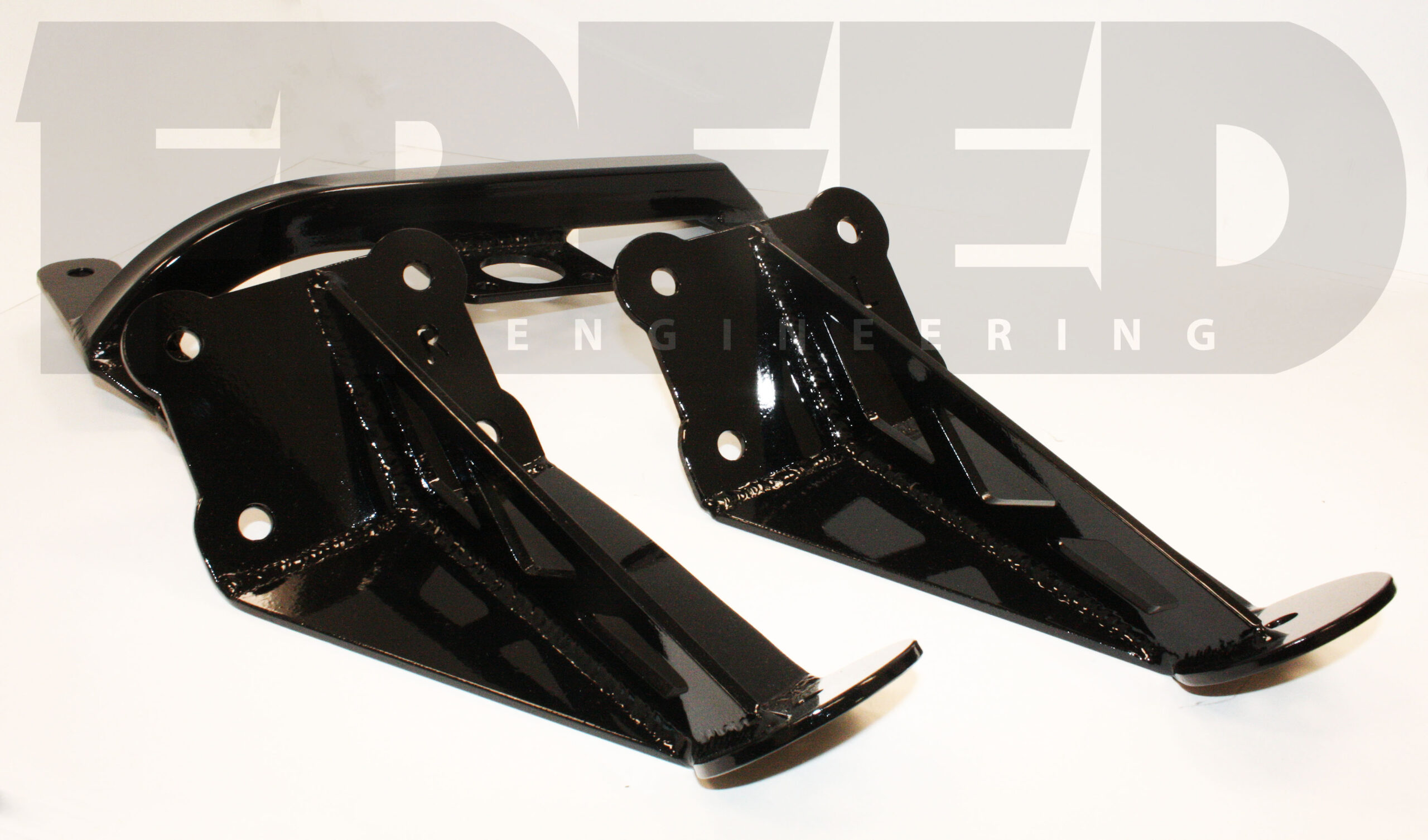

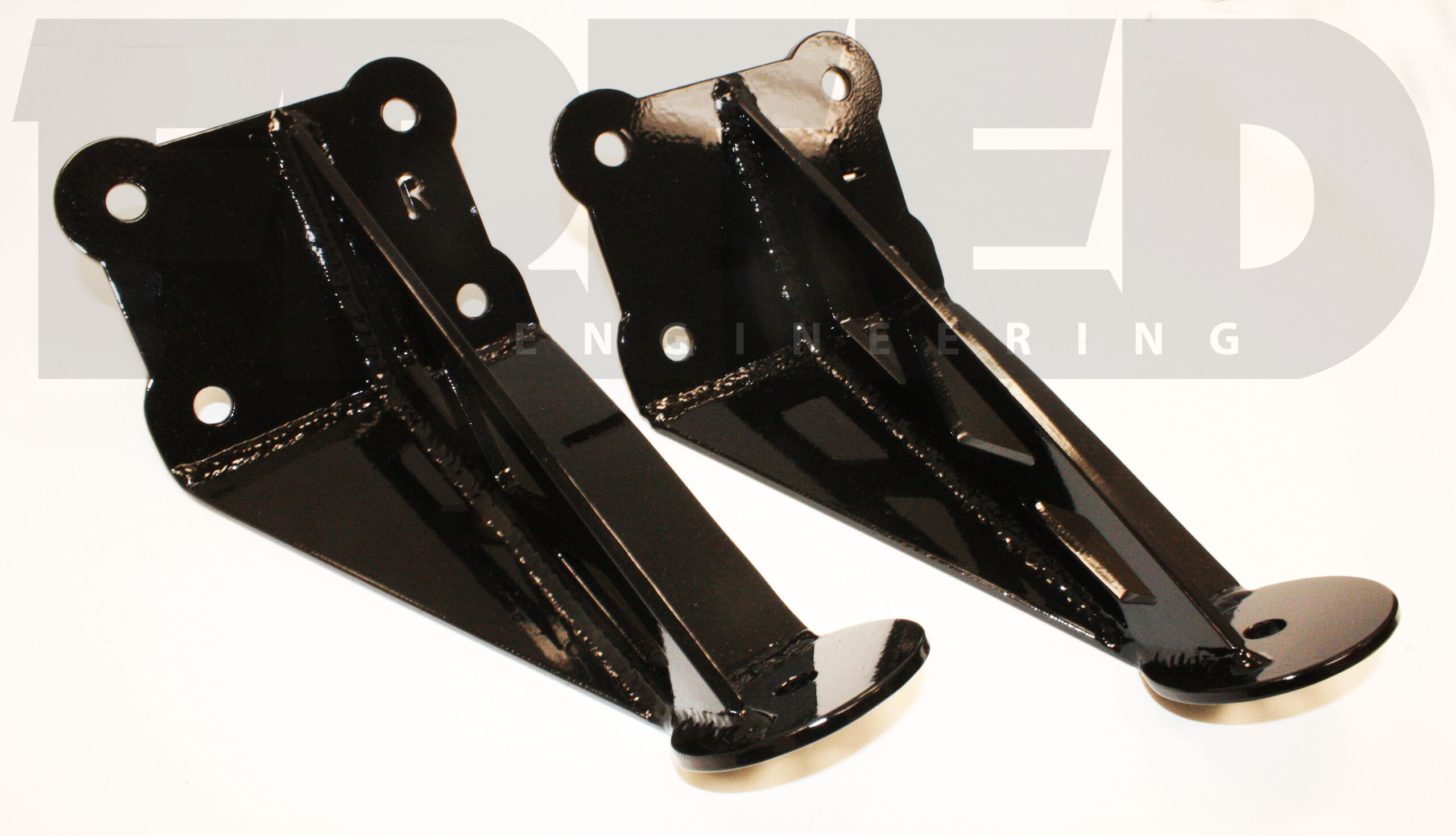

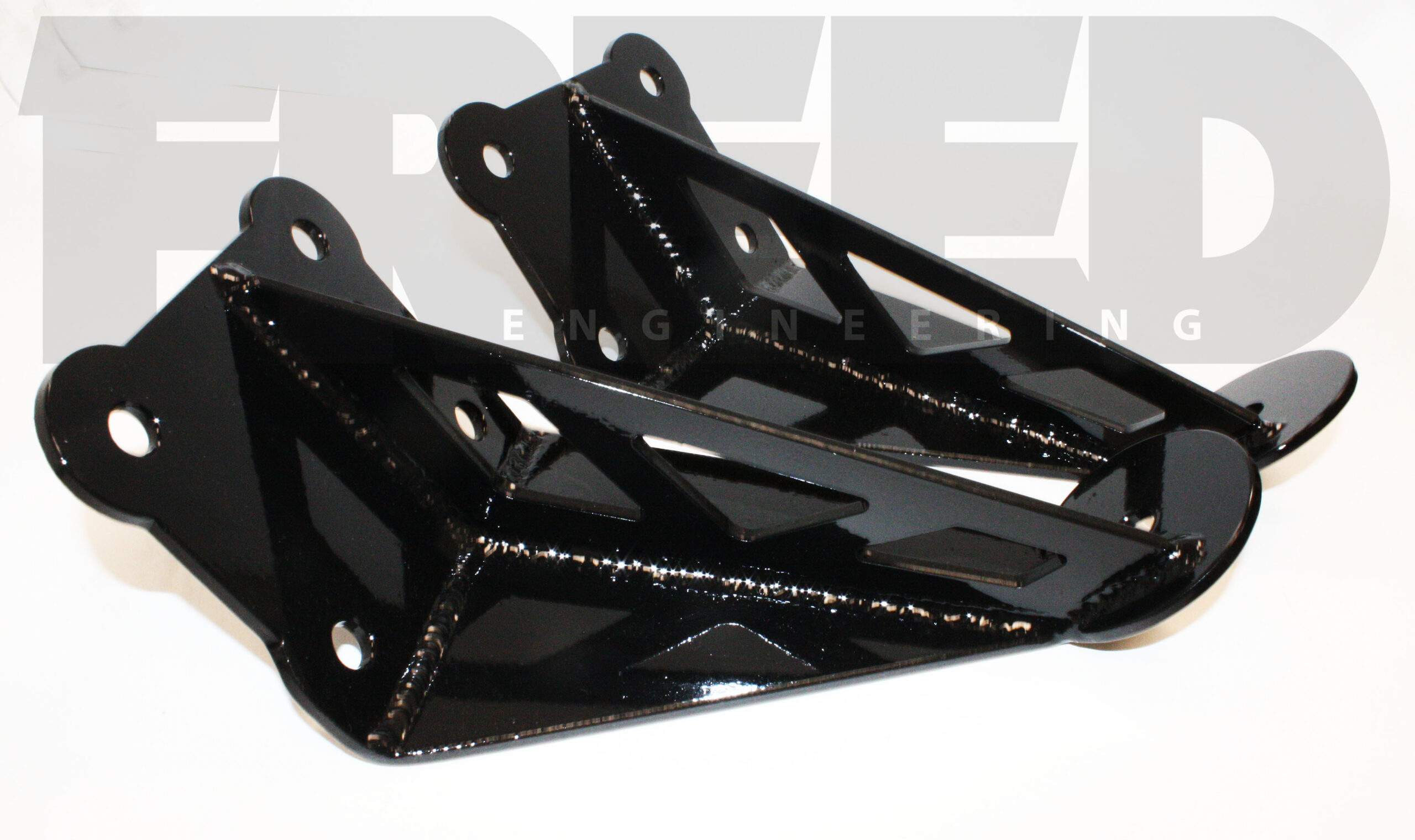

  • Right and Left side engine mount brackets

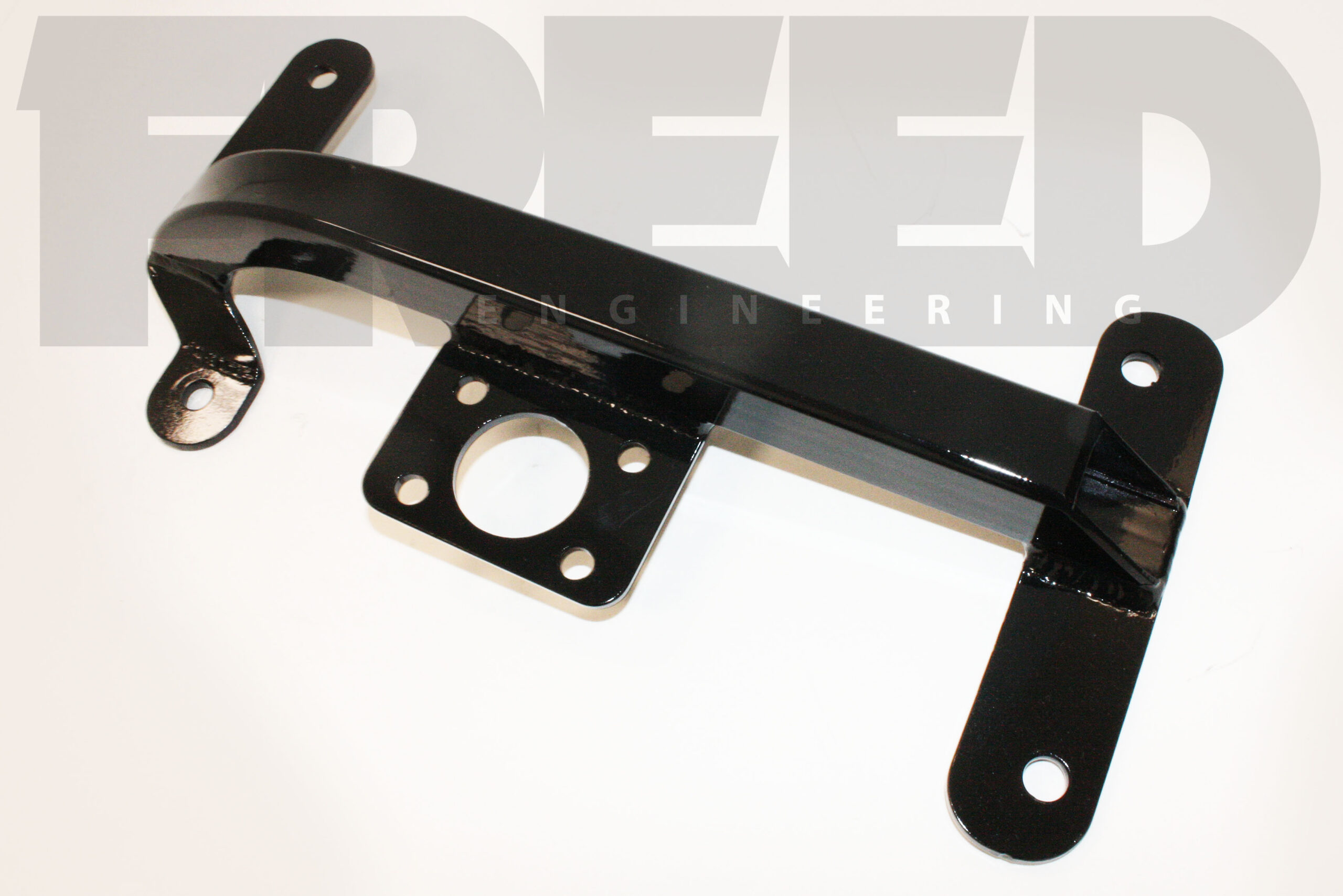

  • Transmission crossmember optional
  • For 2JZ or 1JZ swap into :  E30 BMW
Clear
SKU: 33-E30 Category:

Description

1JZ and 2JZ swap kit for E30 BMW

Designed, built, and tested in the USA, this kit is designed to harness the power of the JZ series engine in your project car.  The superior strength, reliability, simplicity, and sound of the JZ engine is why it is our favored powerplant for all cars.

Our kits are designed to sit the engine as low and far back as possible to allow for ample clearance for the front of the engine and under the hood.

Please note:  Front sump VVTi lower pan required for crossmember clearance as well as matching pick-up.  Toyota part numbers 15104-46070, 12102-46040 (98+ IS300, GS300, Aristo, Mark 2, etc)

  • CNC cut
  • 3/16″ steel plate
  • TIG welded
  • Gloss black coated
  • Designed around OEM E30 engine mount bushings (Any aftermarket style will likely fit)
  • No crossmember modification needed (although reinforcement is recommended)
  • VVTI front sump oil pan required
  • Shifter modification may be necessary

Includes:

  • Left and right side engine brackets w/hardware





Additional information

Weight 18 lbs
Dimensions 12 × 10 × 5 in
