JZ Single Turbo Oil Line Kit

Description

Freed Engineering oil feed and return kit for single turbo 2JZ and 1JZ engines

Everything you need to plumb your new single turbo conversion to your JZ engine.  Pre-crimped PTFE hoses for ease of installation and long life.

Select from the menu options for your turbo and engine configuration.

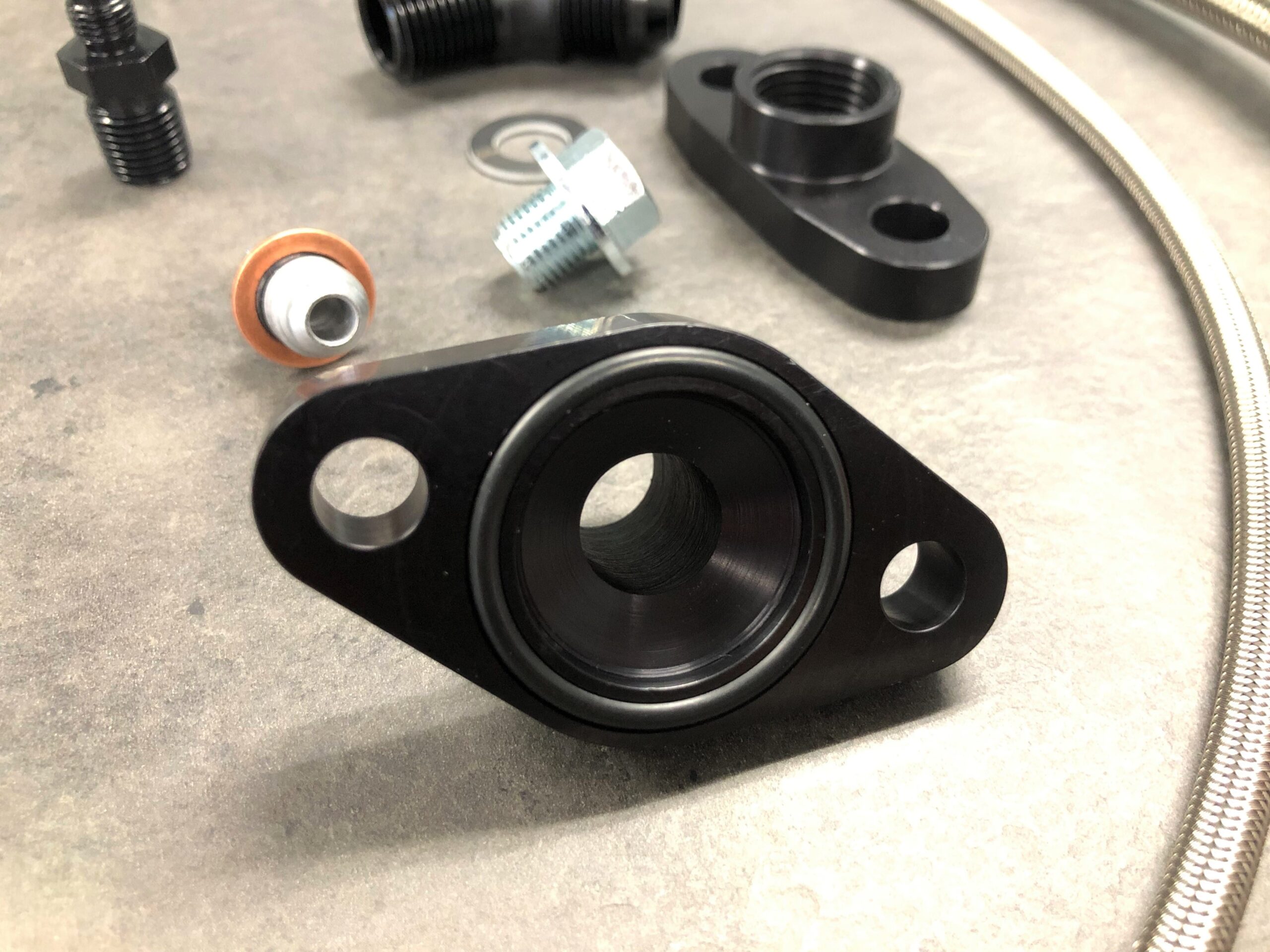

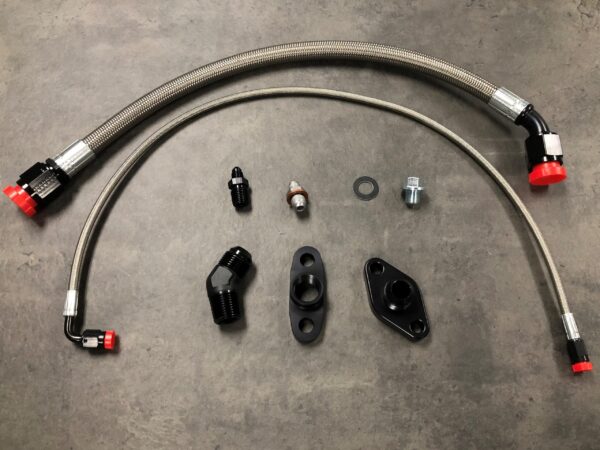

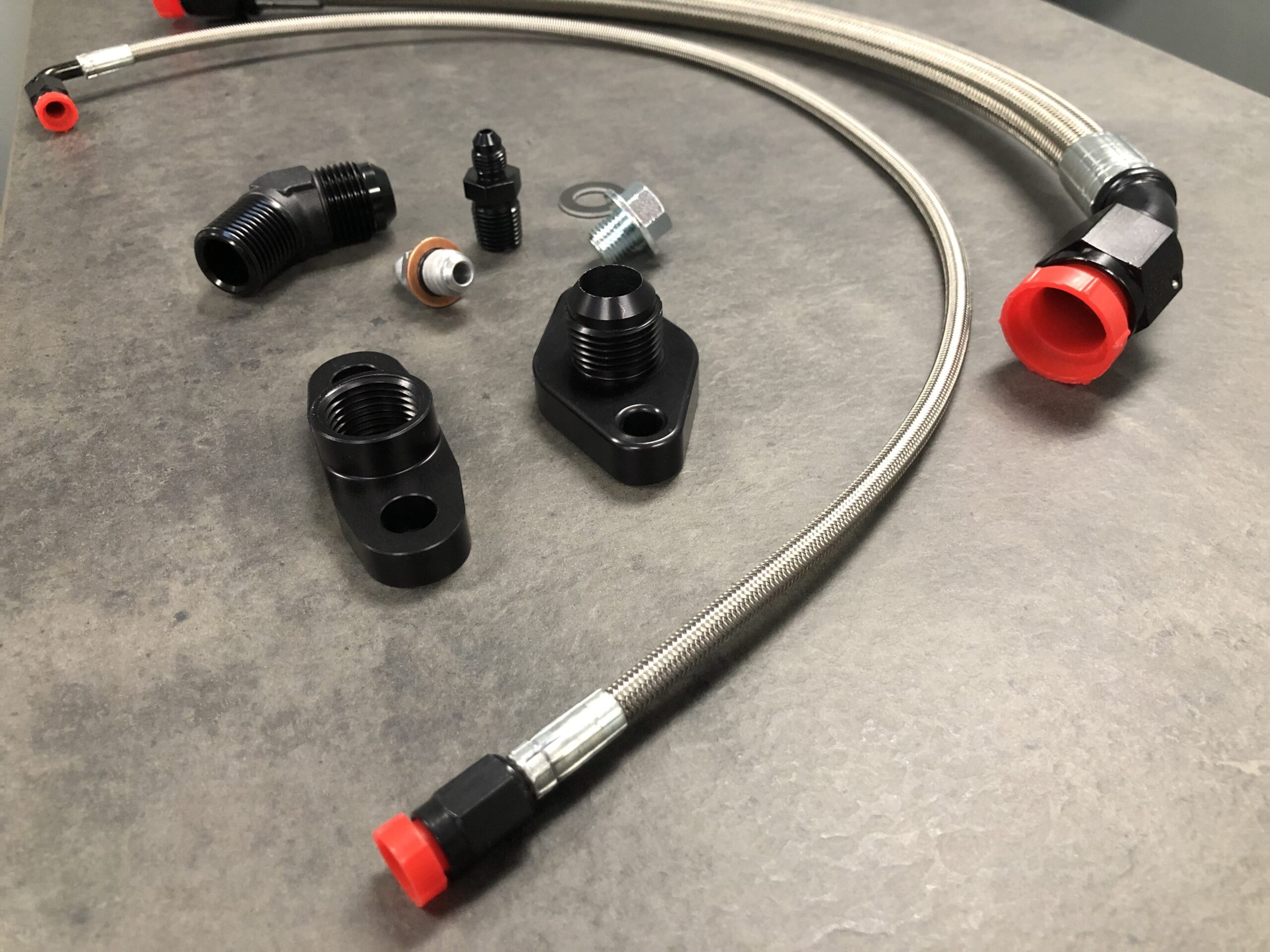

Includes:

• 3AN or 4AN feed line
• turbo feed fitting 1/8″ NPT (3AN), 1/4″ NPT (3AN), or 7/16″-24 restrictor (Garrett, 4AN)
• JZ metric block fitting
• Rear oil port block off
• FE T4 oil drain flange and gasket
• 10AN oil drain line
• FE JZ oil pan drain flange with o-ring seal

By default we include 3AN feed lines with the 1/8″ NPT and 1/4″ NPT inlet fitting options, and 4AN with the 7/16-24″. If you require any different options please include a comment with your order.

**Our oil line kit is made to fit most tubular turbo manifold and turbo configurations.  Please email us BEFORE ordering if you have any concerns or wish to verify length/configuration.
